Products Range

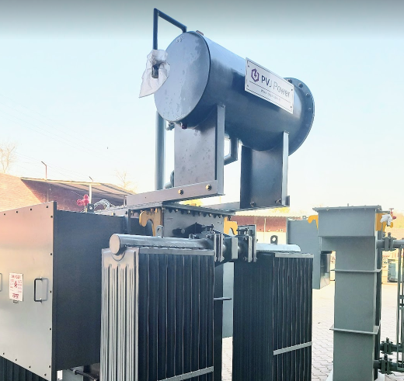

OIL TYPE TRANSFORMERS
- PRODUCT RANGE:
- Capacity : 100 kVA to 10 MVA
- HV Voltage : 6.6 KV, 11KV, 22KV, 33KV Class
- LV Voltage : 0.240 KV upto 6.6 KV
- TRANSFORMER OPTIONS:
- Copper Wound/Aluminium Wound.
- Indoor Type/Outdoor Type
- Pole Mounted/Ground Mounted.
- PSR Radiators/Corrugated Tank.
- Air Breathing Type/Hermetically Sealed Type.
- Off Load Tapping/ On Load Tapping
- 2 Winding/ 3 Winding/ 4 Winding
- Vector Group DYn11/ Ynd11/ Dyn11yn11/ Dy0dy11 / +
- With Electrostatic Shield Protection
DRY TYPE TRANSFORMERS
- PRODUCT RANGE:
- Capacity : 100 kVA to 3 MVA
- HV Voltage : 6.6 KV, 11KV, 22KV, 33KV Class
- LV Voltage : 0.240 KV upto 6.6 KV
- OPTIONS:
- Copper Wound/Aluminium Wound.
- With Canopy/ Without Canopy.
- Cast Resin Type/ VPI Type.
- Off Load Tapping/ On Load Tapping.
- 2 Winding/ 3 Winding/ 4 Winding
- Vector Group DYn11/ Ynd11/ Dyn11yn11/ Dy0dy11 / +
- With Electrostatic Shield Protection
FACTORY BUILT ENCLOSURE:
Factory-built MODULAR CSS Enclosure meet users’ needs in reliability, safety and overall quality. 2mm thick painted GI/MS enclosure fabricated with Modular design.
COMPACT SUBSTATIONS
- PRODUCT RANGE:
- Capacity : 100 kVA to 3 MVA
- HV Voltage : 6.6 KV, 11KV, 22KV, 33KV Class
- LV Voltage : 0.240 KV upto 6.6 KV
- Transformer Compartment IP Rating : IP34/ IP23
- MV/LV Compartment IP Rating : IP54
- OPTIONS:
- RMU Options : ABB/ SIEMENS/ LUCY
- LT Switchgear Options : ABB/L&T
- Transformer Options : Oil Type/ Dry Type
- Walk-in Type/ Closed Type
- Factory In-Built Transformer
- Factory In-Built LT Panel
- Factory In-Built CSS Enclosure

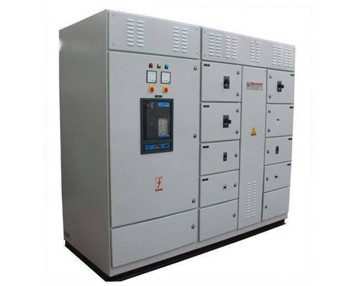

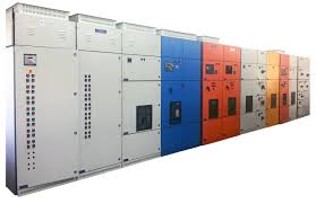

LT & HT PANELS
- PRODUCT RANGE:
- Capacity : Upto 6000 Amps in LT & 1250 Amps in HT
- Voltage : upto 800 V in LT & 33 KV in HT
- Compartment IP Rating : upto IP55
- OPTIONS:
- Swithcgear make : ABB/ L&T
- Factory In-Built Fabricated Body
- Factory In-house Powder Coating Plant
- Factory In-Built Busbar Work
- Factory In-Built Mounting & Wiring
VOLTAGE STABILIZERS (HT & LT)
- PRODUCT RANGE:
- Capacity : 100 kVA to 3 MVA
- HV AVR Range : 6 KV to 14 KV
- LV AVR Range : 280 V to 500 V
- Linear Based Electronic Control Panel Technology
- OPTIONS:
- Balanced Type/ Un-balanced Type
- With Bypass Arrangement
- With Phase Sequencer In-built
